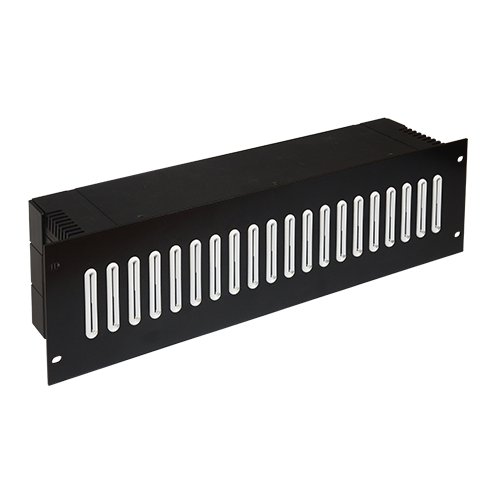

Hyper Card™ 20 - Complete

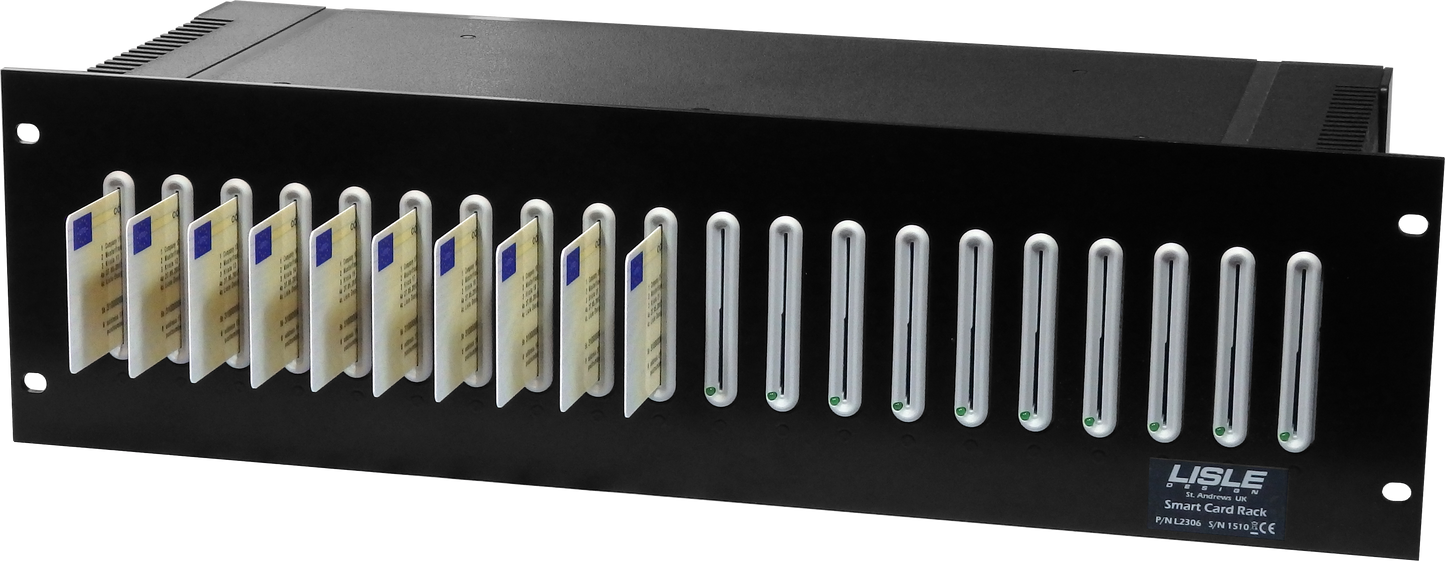

A Hyper Card Rack 20 that hosts 20 smart cards.

Features

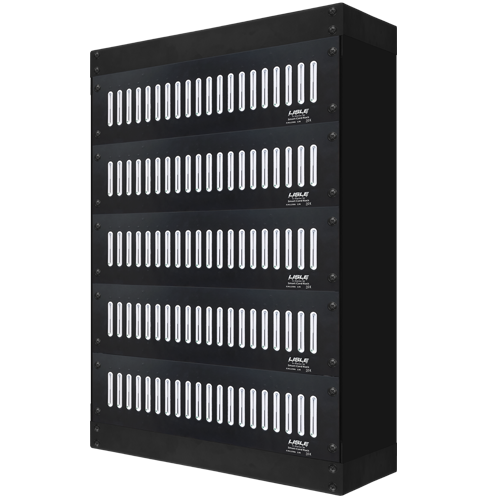

• Forget about USB limitations. Host any number of cards up to 6,000 with only one CPU using any major operating system.
• Scalable. Buy modules as you need them to suit your customers' needs.
• Small foot-print. Drawer fits in a standard 19 inch rack mount, 3U high.
• Versatile. Modules can be used on your desk or hung from a wall if no rack is available.

Benefits

• Maximise resources. All your cards can authenticate simultaneously.
• Superb support. Committed telephone and email support during your development and production.
• Hot swappable cards. Replace your cards at any time while the system is live.
• Low power consumption. Contributes to reduced energy costs and overall savings.

Contents

• 1x Hyper Card™ 20 with 20 cards slots
• 1x Link cable to connect to other Hyper Card™ 20s
• 1x 1.8m USB cable

Shipping & Import Information

• All our products are manufactured and shipped directly from our headquarters in Dundee, Scotland
• For customers outside the UK, the import process is straightforward and fully managed by the courier under Incoterm DAP. Our products are duty-exempt, meaning the only additional costs will be your local Import VAT and a small handling fee. In most cases, you can reclaim this VAT from the relevant tax authority in your country.
• If you have any questions about shipping or import procedures, feel free to contact us.

Specifications

• Manufacturer: Lisle Design Ltd
• Country of origin: United Kingdom
• HS Tariff: 84718000
• Size: 484 x 131 x 100mm
• Rack requirements:
  • Width: 19 inches
  • Height: 3U
  • Depth: 150mm or more
• Weight: 1.8kg
• Connection type: USB

Documentation

• Quick Setup Guide
• Information for Developers
• Frequently Asked Questions
